pumpIT

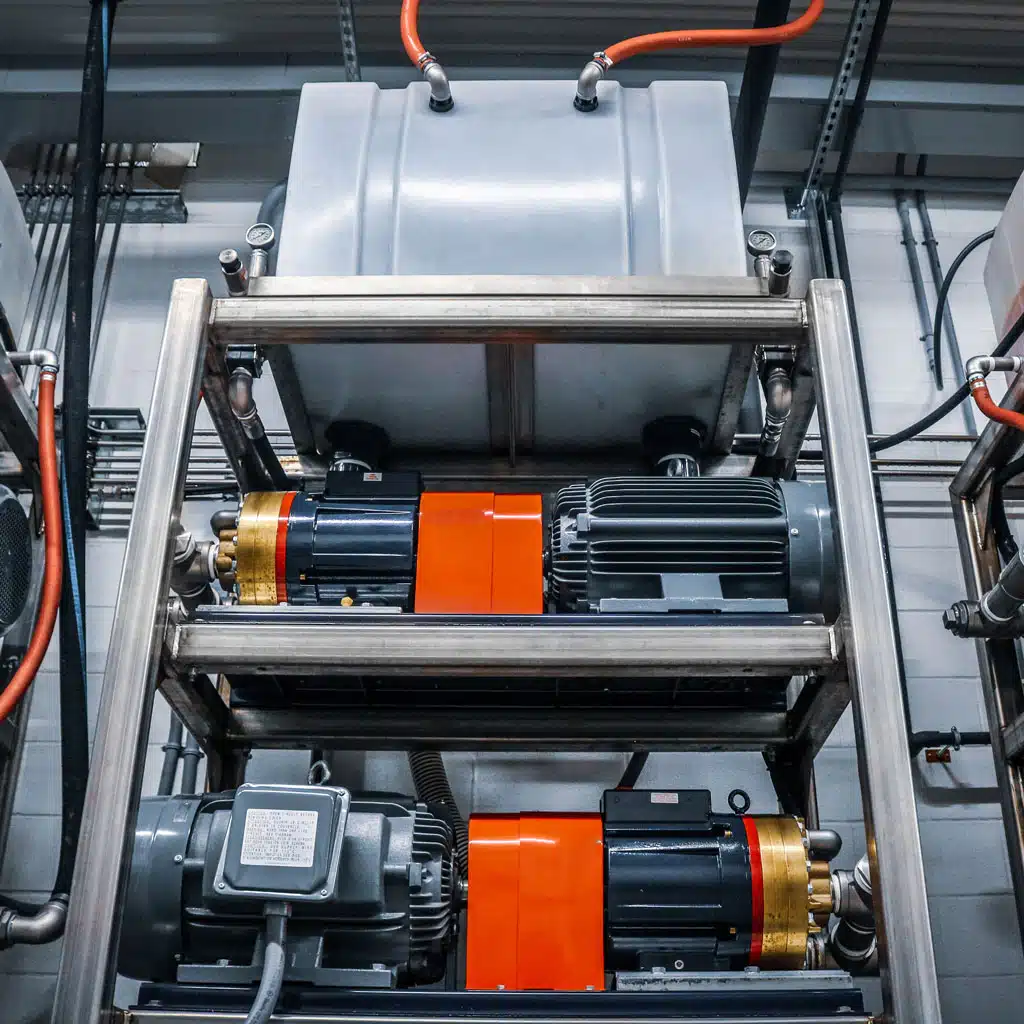

The pumpIT is a high-pressure pump station for tunnel car washes. It delivers reliable high-pressure water to your blasters, arches and other high-pressure functions while minimizing maintenance.
Every pump option is direct drive, with no belts. Choose a single or double pump stand with CAT 340, D10, H25 or D35 pumps, each with its own motor, plus up to four integrated solenoids.
- Direct-drive CAT 340, D10, H25 or D35 pumps
- Single or double pump stand, one 10 to 30 HP motor per pump
- Up to 4 integrated solenoids; tank with float
Reliable high pressure,less maintenance.
The pumpIT delivers consistent high-pressure water to your applicators, with direct-drive pumps and stainless steel construction built for high-volume washes.

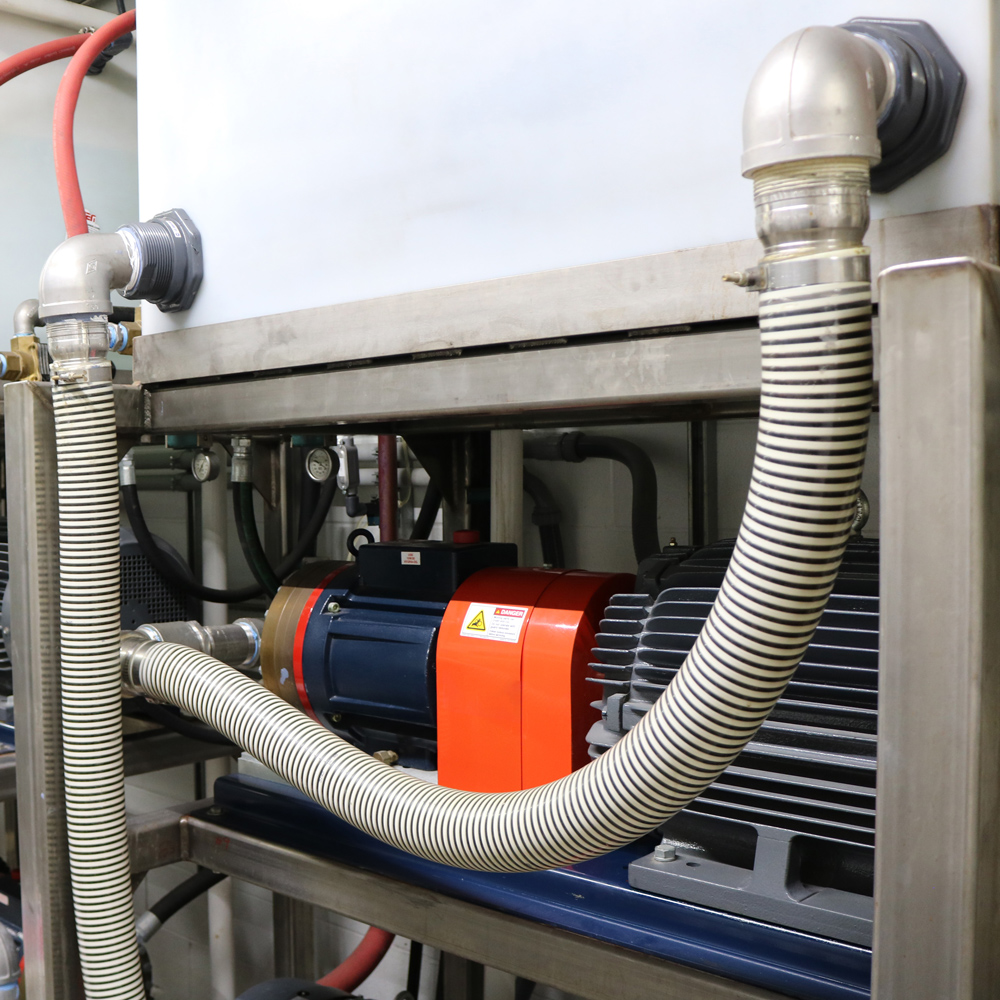

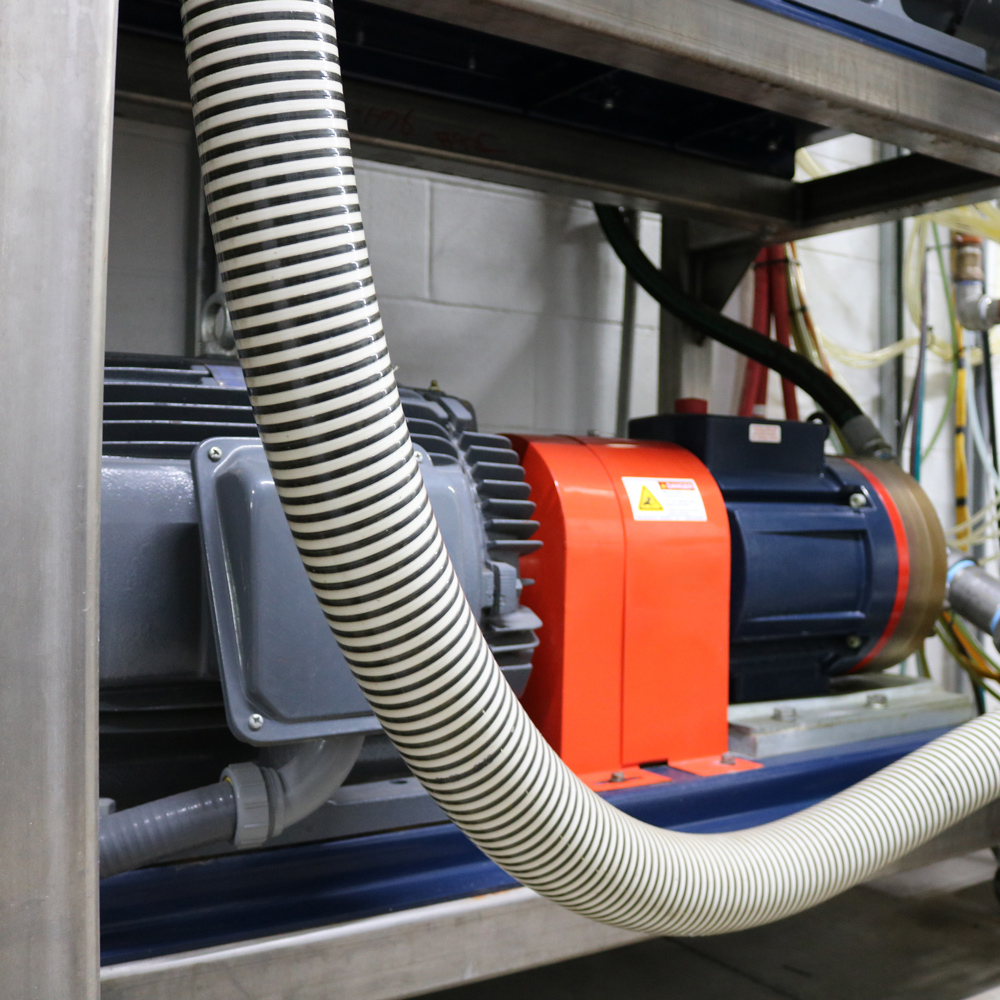

Belt-Free, Direct Drive
Every pump option is direct drive, eliminating belts to reduce maintenance, prevent slippage and keep pressure consistent.
Heavy-Duty Construction
Heavy-gauge stainless steel resists corrosion, dampens vibration and supports a crack-resistant tank with a float and overflow protection.
One Pump, Multiple Applicators
A single pump can supply multiple applicators, reducing equipment and simplifying system design.
Configured for Your Wash
Single or double stands, mixed pump options, up to four integrated solenoids and available reclaim compatibility.



Pump Options
Four direct-drive pumps on a single or double stand. Tell us what the pumpIT will supply and we’ll size it for your wash.
| Pump | Flow and pressure | Stand |
|---|---|---|
| CAT 340 | 4 GPM @ 1,800 psi | Single |
| D10 | 8.1 GPM @ 1,000 psi | Single or double |
| H25 | 20 GPM @ 1,000 psi | Single or double |
| D35 | 36.5 GPM @ 1,200 psi1,500 psi max | Single or double |
Stands and details
- Single pump stand54" W × 64.25" H × 32" D, one pump
- Double pump stand54" W × 92.25" H × 32" D, two pumps, with the larger pump on the bottom
- MotorsOne per pump, sized to the pump (10 to 30 HP)
- SolenoidsNone standard; up to four integrated solenoids available
- Tank and waterTank with float and overflow protection; (2) 1" water feeds per stand
Not sure which pumps you need? Tell us which equipment the pumpIT will supply and which functions run at the same time, and we’ll recommend the stand and pumps.
Talk to Our Team
Specifications
| Specification | Value |
|---|---|
| Pump Options & Operating Pressures | |
| CAT 340 | 4 GPM @ 1,800 psi |
| D10 | 8.1 GPM @ 1,000 psi |
| H25 | 20 GPM @ 1,000 psi |
| D35 | 36.5 GPM @ 1,200 psi1,500 psi max operating pressure |
| Pump Configurations | Single, double and mixed options availableCAT 340 on a single stand; on a double stand the larger pump is on the bottom |
| Motors | 10, 15, 20 or 30 HPOne motor per pump |
| Electrical & Water | |
| Electrical Supply | Dependent on pump selection |
| Water Connections | (2) 1" water feedsPer stand |
| Dimensions (W × H × D) | |
| Single Pump Stand | 54" × 64.25" × 32" |
| Double Pump Stand | 54" × 92.25" × 32" |
| Design | |
| Drive | Belt-free, direct driveAll pump options |
| Construction | Heavy-gauge stainless steel |
| Tank | Crack-resistant, with float and overflow protection |
| Solenoids | None standard; up to 4 integrated solenoids available |
| Options | Float options, reclaim compatibility |

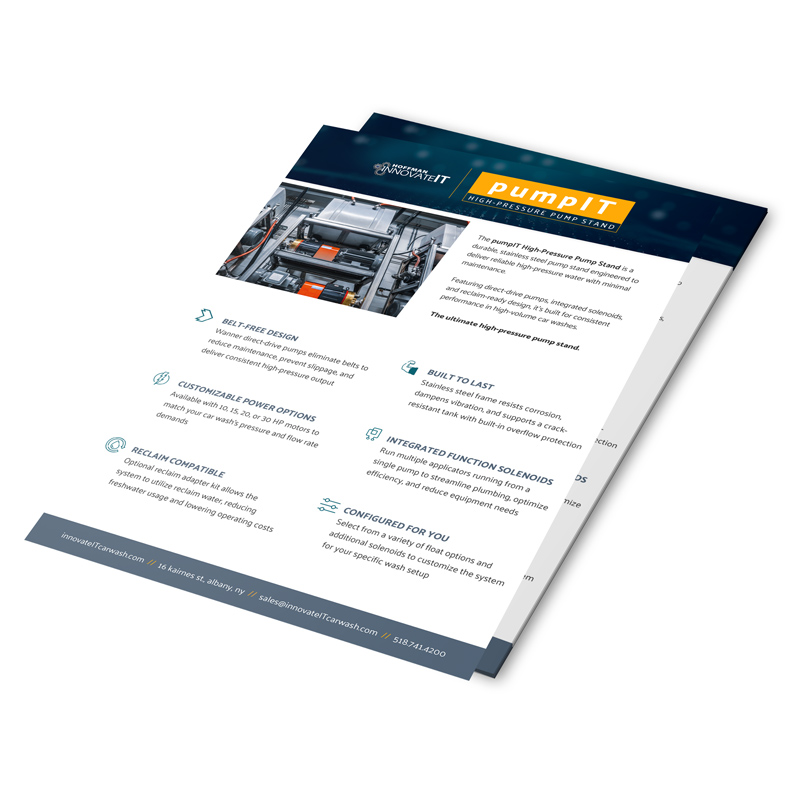

pumpIT Product Guide
Download a printable overview of the pumpIT, including key features, pump options and specifications.
pumpIT FAQs
What does the pumpIT do?
The pumpIT is a high-pressure pump station that delivers reliable high-pressure water to your wash applications while minimizing maintenance. It uses direct-drive Wanner pumps or a CAT 340, integrated solenoids and flexible configurations built for high-volume washes.
Which pumps are available?
Pump options include the CAT 340 (4 GPM @ 1,800 psi), D10 (8.1 GPM @ 1,000 psi), H25 (20 GPM @ 1,000 psi) and D35 (36.5 GPM @ 1,200 psi). Each pump has its own 10, 15, 20 or 30 HP motor. Single, double and mixed pump options are available, and we’ll help you match pumps and motors to your applicators.
What do you need from me to size a pumpIT?
Tell us which equipment the pumpIT will supply, which functions run at the same time, your water source, your available electrical service and the backroom space you have. We’ll use that to recommend the pump stand, pumps and motors for your wash.
What is the difference between a single and a double pump stand?
Both stands are 54″ w × 32″ d. The single pump stand is 64.25″ tall and the double pump stand is 92.25″ tall. We’ll help you choose the stand and pump combination that fits your applications and backroom.
Can one pumpIT supply more than one applicator?
Yes. A single pump can supply multiple applicators when it’s sized for their flow and pressure and for the functions that run at the same time. We’ll review your applicators and confirm the pumps and solenoids you need.
Can the pumpIT run on reclaim water?
Yes. Available reclaim compatibility allows the system to use reclaim water, helping reduce fresh water usage and operating costs.
What utilities does the pumpIT need?
Each pump stand uses two 1″ water feeds. Electrical supply depends on the pumps and motors you select, and we’ll confirm requirements for your configuration.
What to Expect
Discuss Your Application
We’ll review your applicators, pressure and flow needs to size the right pumpIT
Configure Your Pump Station
We’ll help you choose the pump stand, pumps, motors and float options for your wash
Installation & Startup
We’ll work with your installation team or distributor to support proper installation, setup and startup of your pumpIT
