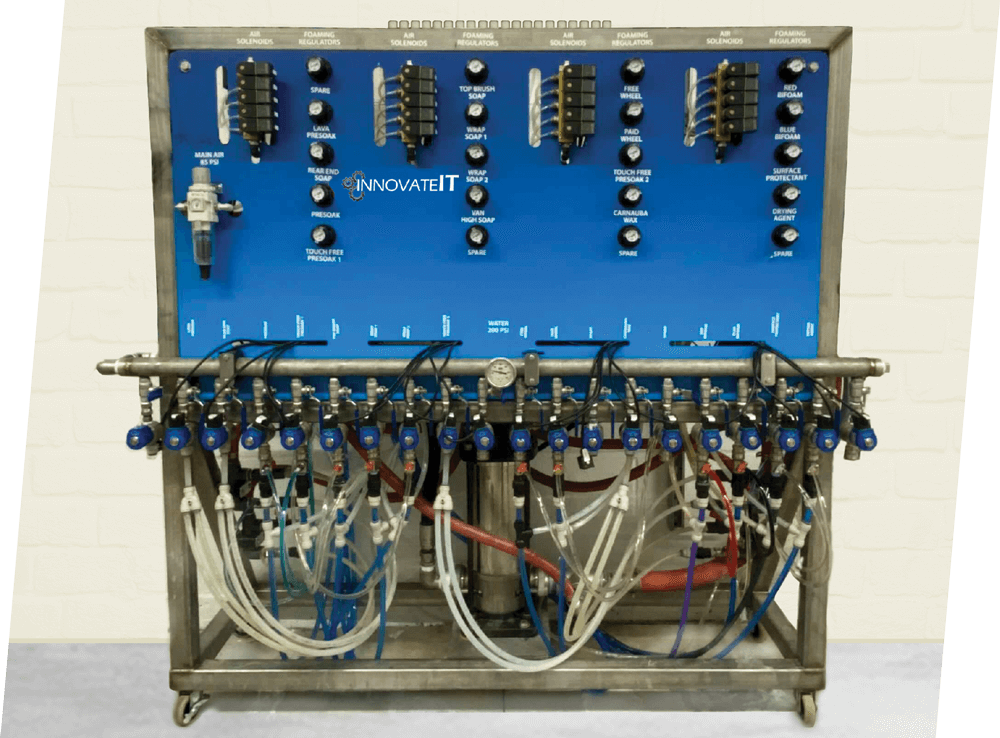

dispenseIT Gen2
dispenseIT Gen2 is a plug-and-play chemical delivery panel that mixes chemical with water and supplies it to your wash functions. Choose 10, 15, 20 or 25 functions, floor or wall mount.
Pre-wired controls, built-in function testing and a hinged back panel simplify setup and service. Industrial, non-proprietary components make replacement parts easier to source.
Why Operators Choose dispenseIT Gen2
Consistent chemical delivery. Easier service.
Control chemical dilution, test functions at the panel and reach components for service. dispenseIT Gen2 is designed around the setup and maintenance work your team handles every day.
Split Manifold Option
An optional split manifold runs the system from multiple water sources, adding redundancy
Clean Electrical Layout
An integrated electrical enclosure brings pump and function controls together and organizes connection points for installation and troubleshooting
Flexible Configurations
Configurations up to 25 functions, with floor or wall-mount options to match your wash
Consistent Chemical Dilution
Quick-connect DEMA Rocket injectors and selected dilution tips match chemical concentration to each application, while the VFD pump helps maintain supply pressure as demand changes
Built-In Function Testing
Test air and pump functions at the panel, independently of the tunnel controller, for quicker diagnostics and service
Industrial, Non-Proprietary Components
Readily available industrial components simplify sourcing replacement parts and support routine service
Built on a Proven Platform
Faster installs. Less downtime.
Pre-Wired Installation
Ships pre-wired. Roll or mount it into place, connect water, air, power, control signals and application lines, then complete setup and startup
Access for Service
A hinged back panel and clearly arranged components help technicians reach connections and map functions during installation and service
Individual Valve Isolation
Isolate, repair or replace individual valves without shutting down the system
How dispenseIT Works
dispenseIT Gen2 pressurizes your water supply, mixes in chemical at set dilution rates and sends it to each wash function from one compact panel.
Watersupply To the wash Foaming airTo foam applicators Chemical
- 01Water inletSupply
Municipal water enters through a 1.25" to 2" FNPT connection, depending on pump and injector selection. An optional split manifold supports multiple water sources.
- 02PumpPressurize
A 5 HP pump delivers 30 GPM at 200 psi, or a 7.5 HP pump delivers 40 GPM at 200 psi.
- 03InjectorsMix
DEMA Rocket injectors, matched to each function, deliver reliable dilution rates with minimal pressure loss.
- 04Function valvesDeliver
Each function has its own valve and a 1/2" to 3/4" discharge, with solution output from 0.3 to 15 GPM at 200 psi.
- 05PanelTest & service
Test air and pump functions at the panel, independently of the tunnel controller. Valves can be isolated for repair or replacement without shutting down the system.
Proven in the Field
dispenseIT was tested and refined in our own express tunnels before it shipped to anyone else. Today it runs at operator and distributor sites like the ones below.
With the dispenseIT, innovateIT has created something unique that is also very easy to use, understand, and maintain… We love it because of its reliability and its ability to maximize the efficiency of the chemical.
Specifications
| Specification | Value |
|---|---|
| Performance | |
| Pump Output | 5 HP: 30 GPM @ 200 psi7.5 HP: 40 GPM @ 200 psi |
| Pump Drive | VFD |
| Solution Output (Flow Rates) | 0.3–15 GPM @ 200 psi |
| Functions | 10, 15, 20 or 25 |
| Injectors | DEMA Rocket, quick-connect |
| Mount | Wall or floor |
| Electrical | |
| Voltage (Pump) | 208 VAC / 3 PH or 480 VAC / 3 PHDepends on pump |
| Max Current (Pump) | 17 A (208 V) / 11 A (480 V)Depends on pump |
| Power Requirement | Constant 120 VAC |
| Control Inputs | 24 VAC/DC: 9 mA per function120 VAC: 4 mA per function |
| Air & Water Supply | |
| Water Supply | Municipal |
| Water Connection | 1.25"–2" FNPTDepends on pump and injector selection |
| Discharge (per function) | 1/2"–3/4" |
| Air Supply | 2 SCFM @ 80–100 psiAdditional air required for downstream foaming applications |
| Air Connection | 3/8" poly tube |
| Dimensions | |
| Width (by functions) | 35.75" (10) · 45.125" (15) · 54.5" (20) · 63.875" (25)Includes the 6" electrical enclosure |
| Wall Mount (H × D) | 29.5" × 14.25" |
| Floor Mount (H × D) | 73.75" × 23.25" |
| Pump (W × H × D) | 16" × 48" × 16" |
| Options | |
| Split Manifold | For multiple water sources; adds system redundancy |
| Also Available | Air gun kit, triple foam manifold, pre-filter & housing, custom back panel decal |
dispenseIT Product Guide
Download a printable overview of dispenseIT Gen2, including key features, specifications and configuration options
dispenseIT FAQs
How many functions can dispenseIT run?
dispenseIT Gen2 comes in 10, 15, 20 or 25-function configurations, all from a single plug-and-play board. Each function has its own valve and a 1/2″ to 3/4″ discharge.
Can dispenseIT be floor or wall mounted?
Yes. Every configuration is available as a floor mount or wall mount. A 25-function floor unit measures 63.875″ W × 73.75″ H × 23.25″ D, and the wall-mount version measures 63.875″ W × 29.5″ H × 14.25″ D. Widths include the 6″ electrical enclosure and are listed for every size in the specifications above.
What injectors does dispenseIT use?
dispenseIT uses quick-connect DEMA Rocket injectors. We select them to match your required dilution rates and the types of functions you run, for reliable dilution with minimal pressure loss.
What pump options are available?
Choose a 5 HP VFD pump delivering 30 GPM at 200 psi, or a 7.5 HP VFD pump delivering 40 GPM at 200 psi. Both run on 208 or 480 VAC 3-phase power.
What utilities does dispenseIT need?
You’ll need 208 or 480 VAC 3-phase power for the pump, constant 120 VAC power, a 24 VAC/DC or 120 VAC control input for each function, 2 SCFM of air at 80 to 100 psi through 3/8″ poly tube (foaming applications need additional air), and a municipal water supply with a 1.25″ to 2″ FNPT connection, depending on pump and injector selection.
How is dispenseIT installed?
The panel ships pre-wired. Installation includes mounting or positioning the equipment, connecting water, air, power, controller signals and application lines, and completing setup and startup. We’ll work with your distributor or installation team to review site requirements.
Can I service a valve without shutting down the wash?
Yes. Valves can be isolated while they’re repaired or replaced, so the rest of the system keeps running. You can also test air and pump functions independently of the tunnel controller for quicker diagnostics.
Can dispenseIT Gen2 replace an existing chemical delivery system?
In many cases, yes. Our team can review your wash functions, tunnel controller, utilities and available space to determine the right configuration and installation requirements.
Is the split manifold standard?
No. The split manifold is optional. It lets dispenseIT Gen2 run from multiple water sources and adds redundancy to the system.
