soakIT Presoak Arch

Customizable and Consistent Performing Presoak Arch

Save Space

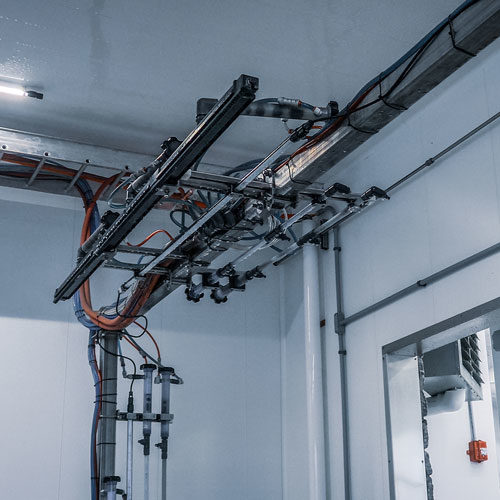

The arch's design creates a small linear footprint for multiple applications, saving you valuable tunnel space

Built For You

Bolt-on components allow the arch to be configured to your specific needs

Adaptable

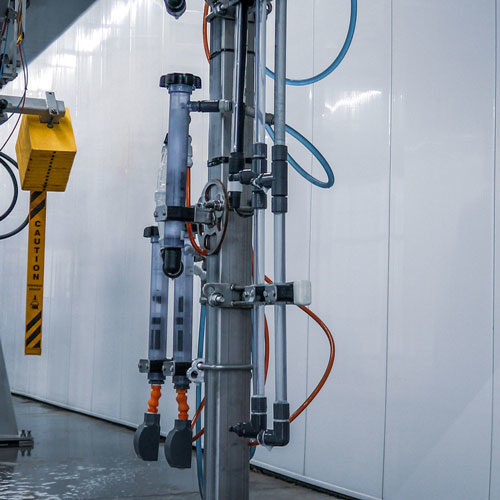

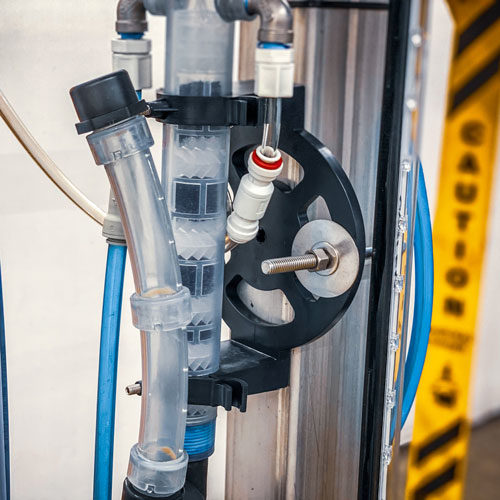

Adjustable applicator mounts are pre-plumbed to the side of the arch, making installation simple. Easily add additional applicators at any time.

Previous

Next

Key Features

Built to Last

Constructed from stainless steel, the unit can handle just about anything your car wash throws at it

Adjustable

Adjust applicator mount positioning, as well as the arch’s width to fit the specifications of your tunnel

A La Carte Cleaning

Select features from lava rain-style applicators to arc foamer applicators & more

Stay for the Show

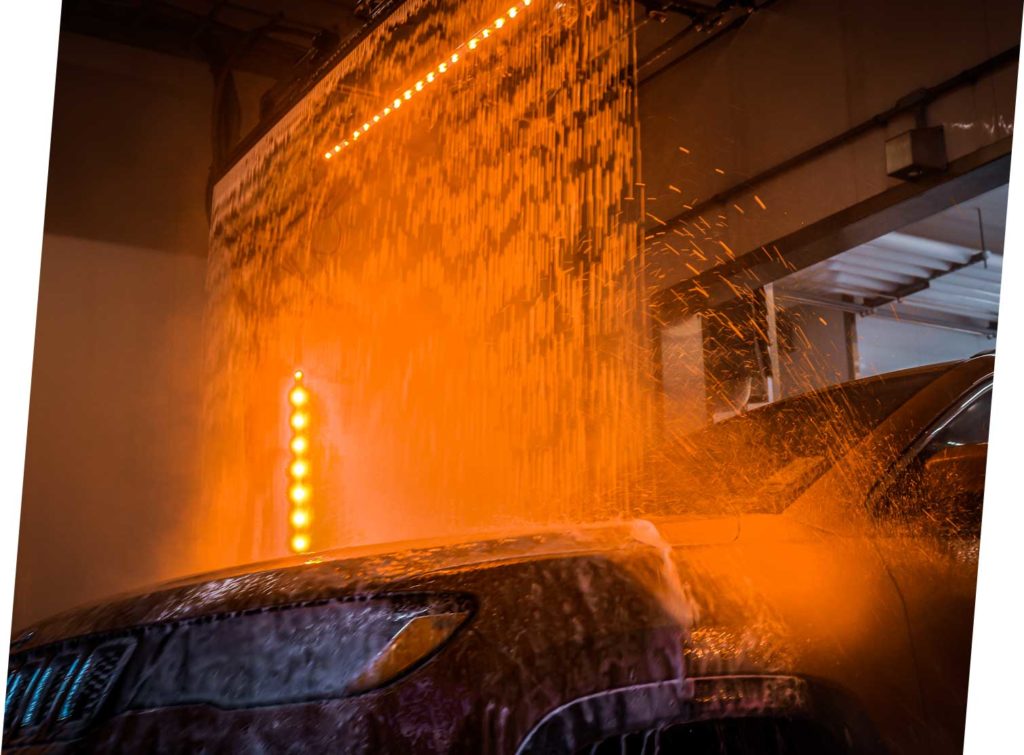

WOW your customers with an impressive visual of the product application

Made In The USA

All innovateIT products are designed, tested, manufactured, and shipped from our headquarters in Albany, NY

Product Gallery

soakIT Arch

soakIT Arch

soakIT

soakIT Arch Applicators

soakIT Arch

soakIT Arch

soakIT Arch Applicators

soakIT Arch

soakIT Arch

Previous image

Next image

Specs

System Requirements

Water

1.5″ Water Feed

Air

3/8″ at 85 PSI Airline Feed

Electric

Pump
- 5 HP: 208/230 18A or 480 8A
- 7.5 HP: 208/230 250A or 480 11A
Controls
- 24 AC or DC
- 120 VAC

Equipment Room Footprint

61″ Width x 60″ Height x 24″ Depth

Materials

Stainless Steel Frame and Solenoids
