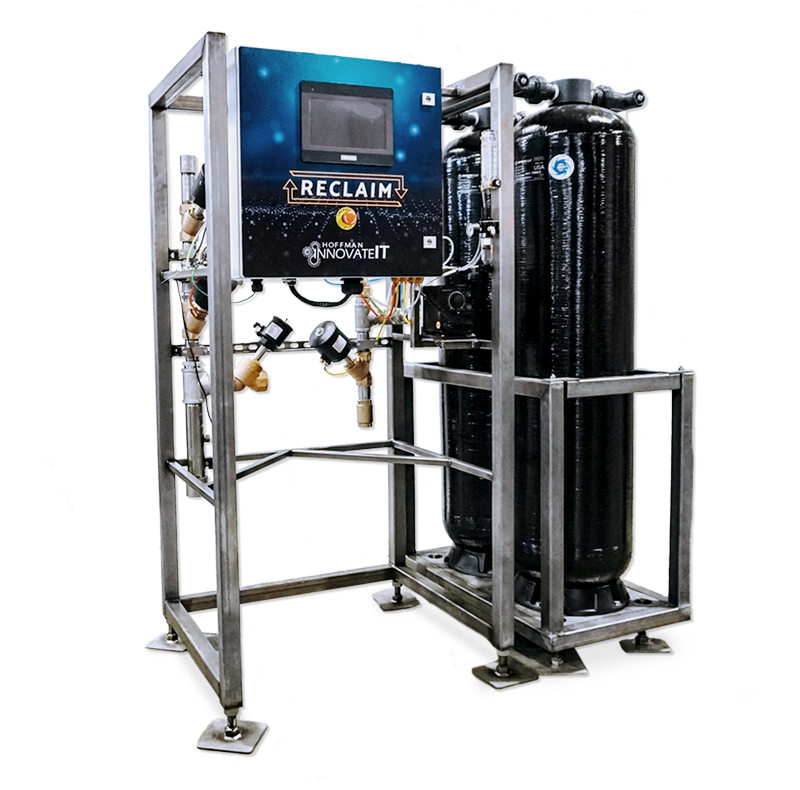

RECLAIM GEN2
Reclaim Gen2 is a car wash water reclaim system that filters and treats used wash water for reuse, at up to 50 GPM. It fits new tunnels and retrofits, and can often replace an existing reclaim system.
Variable flow, media filtration and built-in diagnostics help operators manage reclaim water quality and daily operation.
Why Operators Choose Reclaim Gen2
Every reclaim system promises water savings. We think operators should expect more.
A reclaim system should do more than reduce water consumption. It should deliver clean reclaim water, maximize water reuse, and make day-to-day operation easier. Every improvement in Reclaim Gen2 was designed with those goals in mind.
Cleaner Reclaim Water
Multimedia filtration removes over 99% of particles over 20 microns. Optional nanobubble integration helps improve clarity and reduce scale and biofilm buildup.
Adjust Reclaim Use to Wash Demand
Variable flow lets operators adjust reclaim utilization based on wash demand, helping them make effective use of reclaimed water.
Clear System Feedback
Touchscreen controls and built-in diagnostics help operators monitor system performance and troubleshoot issues.
Efficient Filtration
High-performance filter media limits pressure loss, extends operation between backflushes and reduces backflush water use.
Built on a Proven Platform
Consistent reclaim water. Less daily work.
Eliminate Daily Basket Cleaning
A Grundfos SEG grinder pump replaces the inlet strainer basket, breaking down cloth, plastic and other debris before it reaches the filter.
Aeration, Filtration, and Dosing
A microbubbler aerates water in the settling tanks, adjustable chemical dosing helps control odors, and media filtration removes suspended particles before water returns to the wash.
Automatic Flushing & Backflushing
Programmed cleaning cycles help maintain filter performance and reduce manual upkeep.
Optional Direct Feed
The optional direct-feed configuration provides a fresh water backup and treats the filter media during off-hours.
How Reclaim Gen2 Works
Reclaim Gen2 pulls used wash water from your settling tanks, treats and filters it, and sends it back to the tunnel at the rate your wash needs.

- 01Settling tank 1Settle
Wash water drains into the first of at least three 2,000-gallon tanks, where sand, mud and heavy solids drop out.
- 02Settling tank 2Aerate
A microbubbler adds compressed air to keep oxygen up and odors down, so the water needs less chemical.
- 03Clarifier tankGrind & pump
A Grundfos SEG grinder pump breaks down cloth, plastic and other debris and sends the water to the skid. No strainer basket to clean.

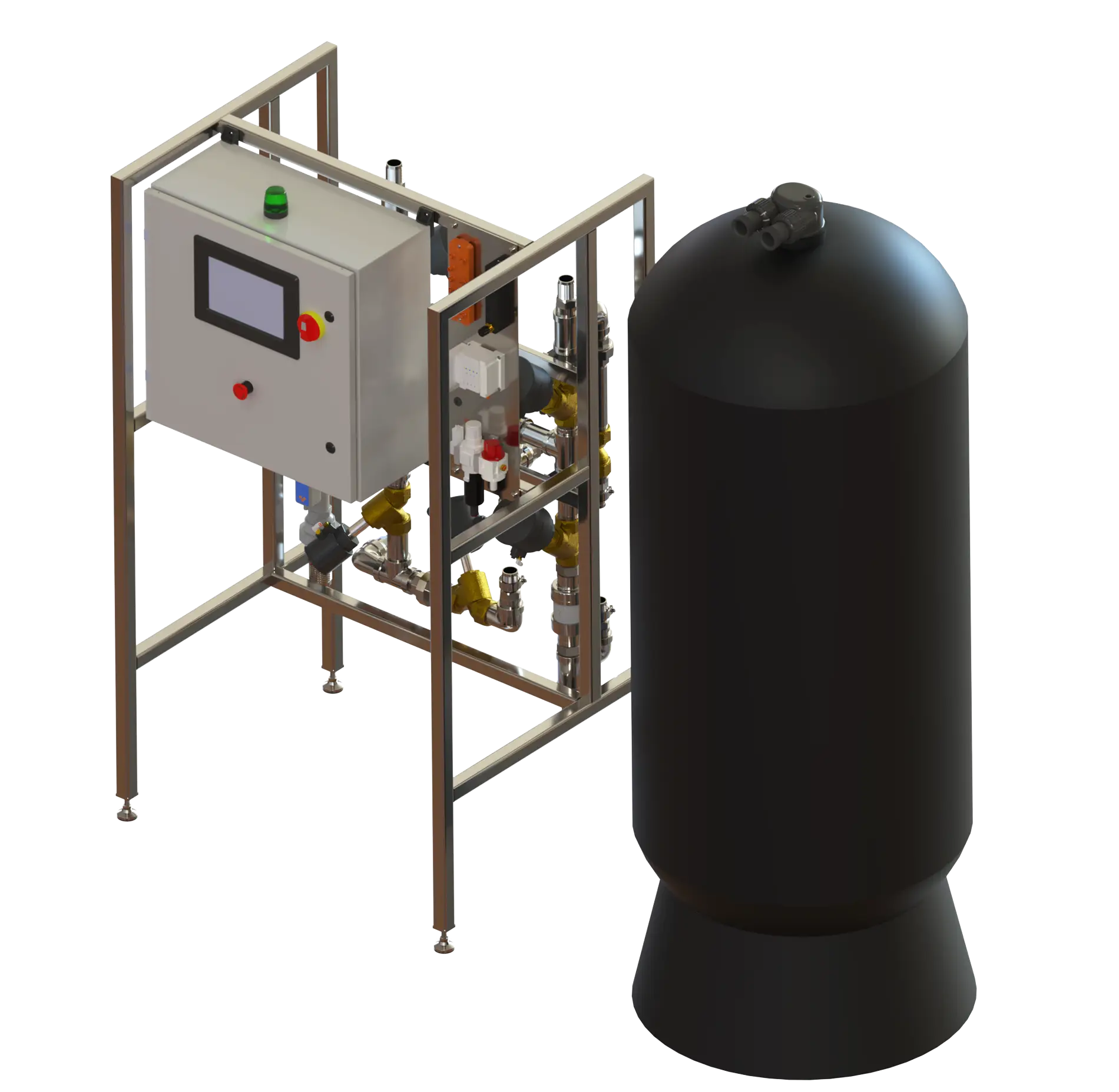

- 04Reclaim Gen2 skidTreat & filter
A dosing pump adds an oxidizer, then the multimedia filter removes over 99% of particles over 20 microns.
Optional: nanobubbler for clearer water and less scale and biofilm.
- 05Back to the washReuse
Filtered water, up to 50 GPM, goes to a holding tank or, with optional direct feed, straight to your reuse applications.
When the tunnel isn't calling for water, the system cycles water back to the tanks and aerates the whole volume so it doesn't go stagnant.
City water flushes the filter and carries trapped solids to your oil/water separator, with media designed for longer runs between backflushes.
Proven in the Field
Reclaim Gen2 runs in our own express tunnels, where it was tested at high volume before it shipped to anyone else.
We don't want our reclaim systems to increase our managers' work load. We use innovateIT's Reclaim Water Treatment system because it produces high-quality water, reduces waste, and minimizes maintenance.
Specifications
| Specification | Value |
|---|---|
| Performance | |
| Max Reclaim Production | 50 GPM |
| Filtration | Removes 99%+ of particles over 20 microns |
| Pump Size | 5 HP |
| Minimum Water Temperature | 40°F |
| Electrical | |
| Voltage | 480 VAC / 3 PHOptional: 208 VAC / 3 PH |
| Max Current | 7 A (480V) / 16 A (208V) |
| Air & Water Supply | |
| Municipal Water Supply | 1.5" FNPT |
| Min. Municipal Water Supply Flow (Flushing) | 40 GPM |
| Max. Municipal Water Pressure | 100 psi |
| Air Supply (Clean, Dry Air) | 4 SCFM @ 80–100 psi |
| Air Connection (Regulator) | 1/4" poly tube push connect |
| Air Connection (Flow Meter to Microbubbler) | 3/8" air line |
| Connections | |
| SEG Grinder Pump Supply | 2" FNPT |
| Recirculation Outlet to Tunnel Pit | 2" FNPT |
| Sewer Outlet to Oil/Water Separator | 1.5" FNPT |
| Reclaimed Supply to Applicators | 1.5" FNPT |
| Filter Inlet / Outlet | 1.5" FNPT |
| Dimensions | |
| Main Frame (W × H × D) | 40" × 73" × 34" |
| Filter (W × H) | 30" × 72" |
| Site Requirements | |
| Installation | New tunnels and retrofits |
| Feed Setup | Tank feed (recommended) or direct feed |
| Settling Tanks | At least three 2,000-gallon in-ground tanks with internal baffle walls |
| Backflush Drain | To oil/water separator, handling up to 40 GPM |

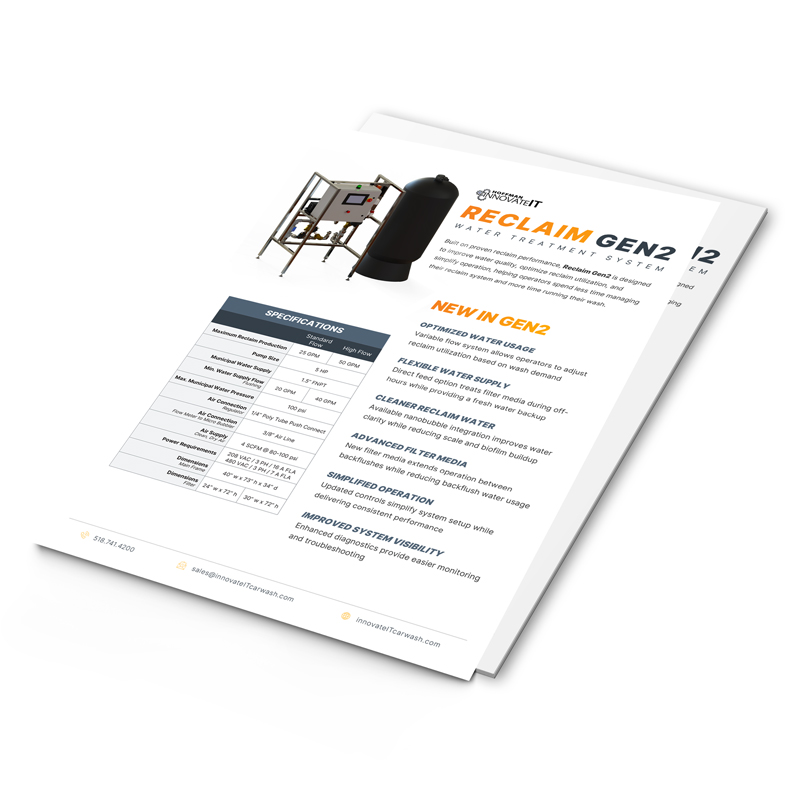

Reclaim Gen2 Product Guide
Download a printable overview of Reclaim Gen2, including key features, specifications, and configuration information
Reclaim Gen2 FAQs
How much fresh water can Reclaim Gen2 help reduce?
Water savings depend on wash volume, wash packages, equipment and the applications using reclaim water. Reclaim Gen2 helps reduce fresh water consumption by treating used wash water for reuse, and our team can review your operation and help estimate the potential savings for your site.
Where can reclaim water be used?
Common applications include underbody wash, wheel blasters, belt flushing and trench flushing. Suitability depends on your equipment, chemistry and reclaim water quality. Our team will help identify appropriate applications for your wash.
Can Reclaim Gen2 replace my existing reclaim system?
In many cases, yes. Reclaim Gen2 is designed for both new installations and retrofit applications. We’ll review your existing reclaim system, equipment, and operating requirements to determine the best approach for your wash.
How is the reclaim water treated?
Reclaim Gen2 treats water in stages. A microbubbler in the settling tanks adds air to keep dissolved oxygen up and odors down, a Grundfos dosing pump adds an oxidizer at rates you set on the touchscreen, and the multimedia filter removes over 99% of particles over 20 microns. Optional nanobubble integration helps improve clarity and reduce scale and biofilm buildup.
What maintenance does Reclaim Gen2 require?
Reclaim Gen2 is designed to minimize routine maintenance. The integrated Grundfos SEG grinder pump eliminates the need for daily strainer basket cleaning, reducing operator involvement. Periodic maintenance includes routine system inspections, grinder pump oil changes, and filter media replacement based on operating conditions.
What should I consider before installing a reclaim system?
Selecting the right reclaim system starts with understanding your operation. Factors such as water usage, desired reclaim water applications, settling capacity and flow, available tanking, and site layout all influence system performance. It’s also important to evaluate the expected water savings alongside the cost to operate and the overall impact on your operation. We’ll work with you to review these considerations and recommend the solution that’s the best fit for your wash.
Learn More About Car Wash Water Treatment
Complete Your Backroom

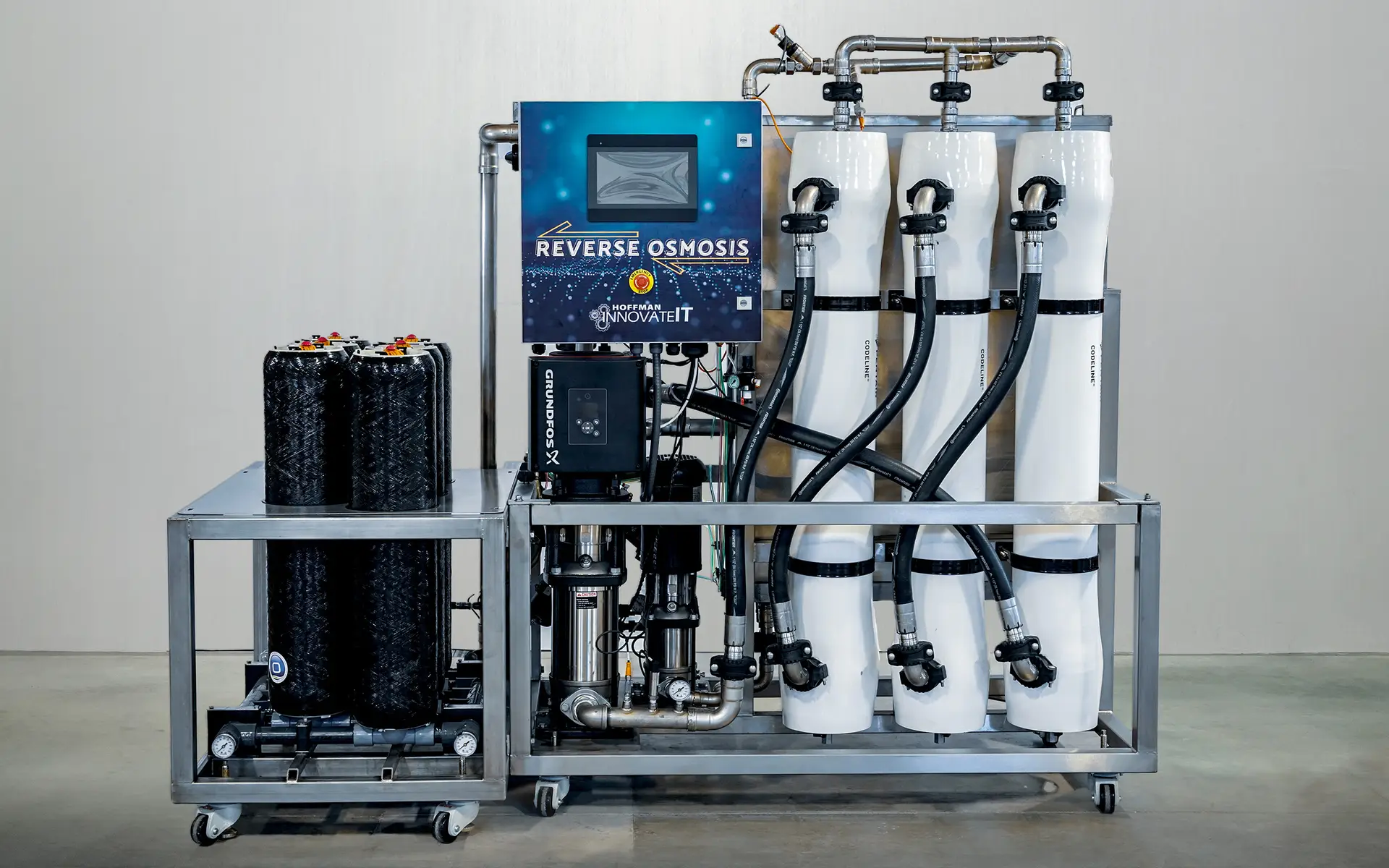

Spot-Free
Reverse osmosis systems for consistent spot-free rinse water

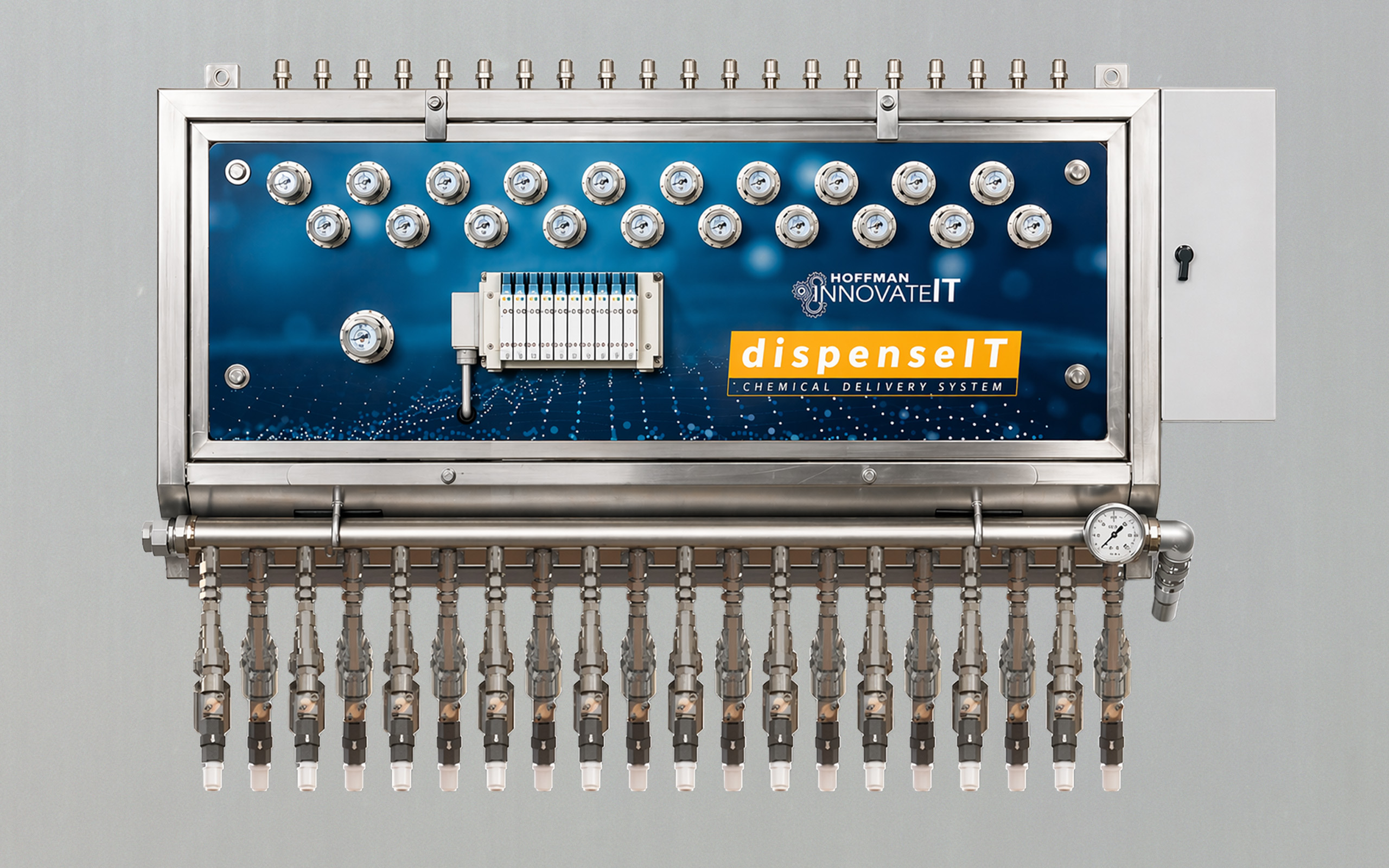

dispenseIT Gen2
Chemical delivery in 10, 15, 20 or 25-function configurations, floor or wall mount

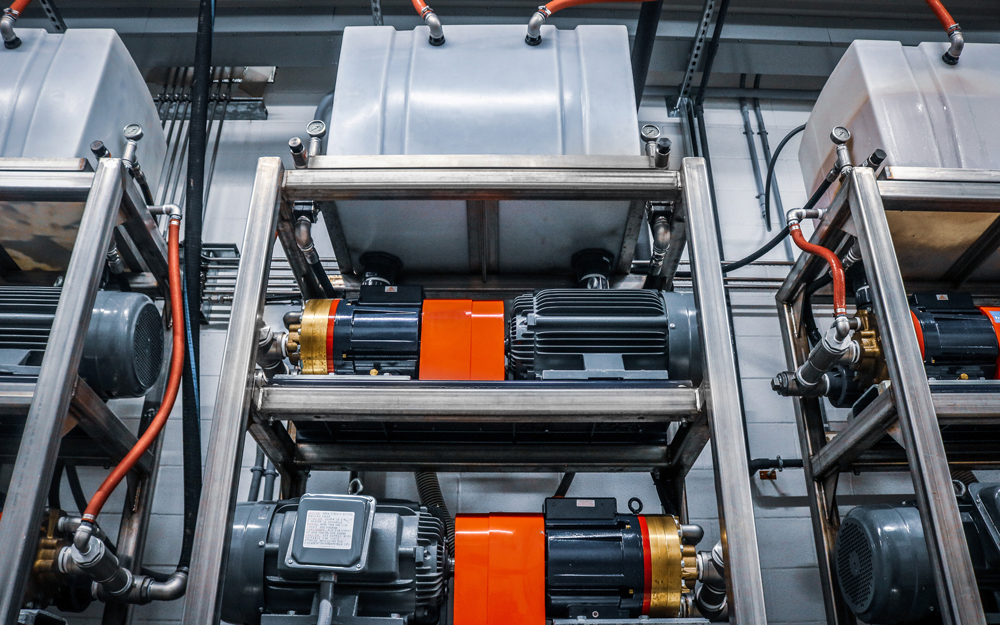

HP Pump Stands
