HIGH-PRESSURE PREP ARCH

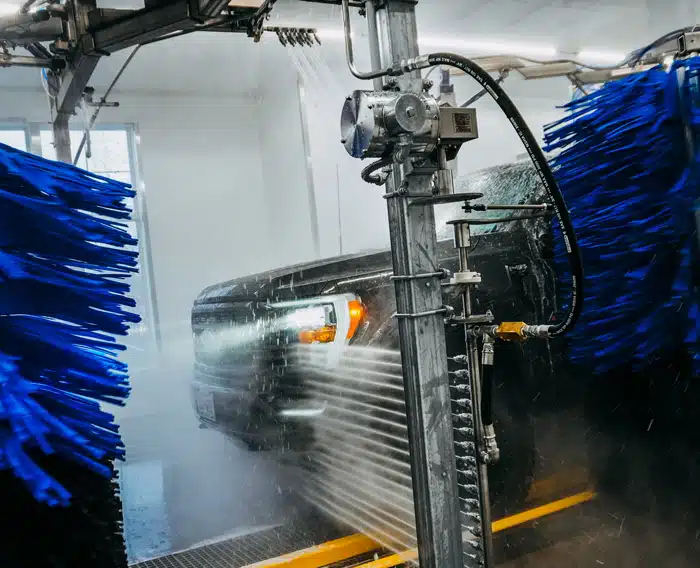

blastIT High-Pressure Arch
Consistent, high-pressure cleaning to prep vehicles and boost throughput
Minimized Prepping
Maximized Throughput
Proven Durability
Reduce Labor
Minimizes manual prepping to reduce labor costs, improve throughput, and increase profitability
Customizable Oscillation
Adjustable spray angles and VFD-controlled movement deliver consistent coverage across every vehicle
Flexible Configurations
Modular top and side kits fit both 3” and 4” arches, scaling to any tunnel layout or performance goal
Tested in our washes. Improved for yours.
Key Features
The blastIT High-Pressure Prep Arch is engineered to increase throughput, deliver consistent, high-pressure cleaning quality, and reduce labor in your wash
Fast & Simple Installation
Pre-plumbed manifolds make setup quick and straightforward with true plug-and-play design
Reclaim Compatible
Operates effectively with reclaim water, helping reduce fresh water usage and lower operating costs
Built To Last
Durable, stainless steel construction ensures long-lasting operation in demanding environments
Specifications
Performance Specs
Water Usage (Per Manifold)
Top: 9 GPM
Side: 18 GPM
Based on .0003 nozzle
Electrical Supply
Electrical Supply
(3) 3 PH 1/2 hp motors
Voltage (Motor)
208 VAC / 3 PH
480 VAC / 3 PH
Pump Requirements
Pump Requirements
Top: (1) H-25 / 20 GPM
Sides: (1) D-35 / 36.5 GPM
Based on .0003 nozzle
Pump Max Operating Pressure
H-25: 1000 psi
D-35: 1500 psi
Water Connections
Water Connections
3/4" FNPT per siide
Dimensions
Arch
144" w x 100.5" h x 24" d
HOW TO GET STARTED
Talk With Our Team
We’ll review your tunnel setup and prepping needs to determine the right blastIT configuration
Select Your Arch
Choose between 2-side or 4-side designs, with optional top manifold configuration for maximum coverage
Go Prep-Less
Put the blastIT to work and start reducing labor while keeping cars moving quickly with consistent quality
Trusted By
"The blastIT is a beast. It has helped us eliminate prepping while keeping cars moving quickly through the tunnel with consistent quality.
Michael Burford
VP of Facilities, Mint Eco Car Wash
"With the blastIT, we’ve been able to transition our sites to a prep-less model, which has made a huge difference in our operations. Not only has it streamlined the process for our team, but it’s also delivering a faster, more consistent wash experience that our customers really notice and appreciate."
Gary Baright
Owner, Foam & Wash Car Wash
“People told us you couldn’t run a prep-less tunnel in Alaska’s harsh environment—but the blastIT proved them wrong. It’s given us the power and consistency to eliminate manual prepping and still deliver the level of quality our customers expect.”
Nathan Bertsch
Operating Partner, Sudzy Salmon
Want to learn more?

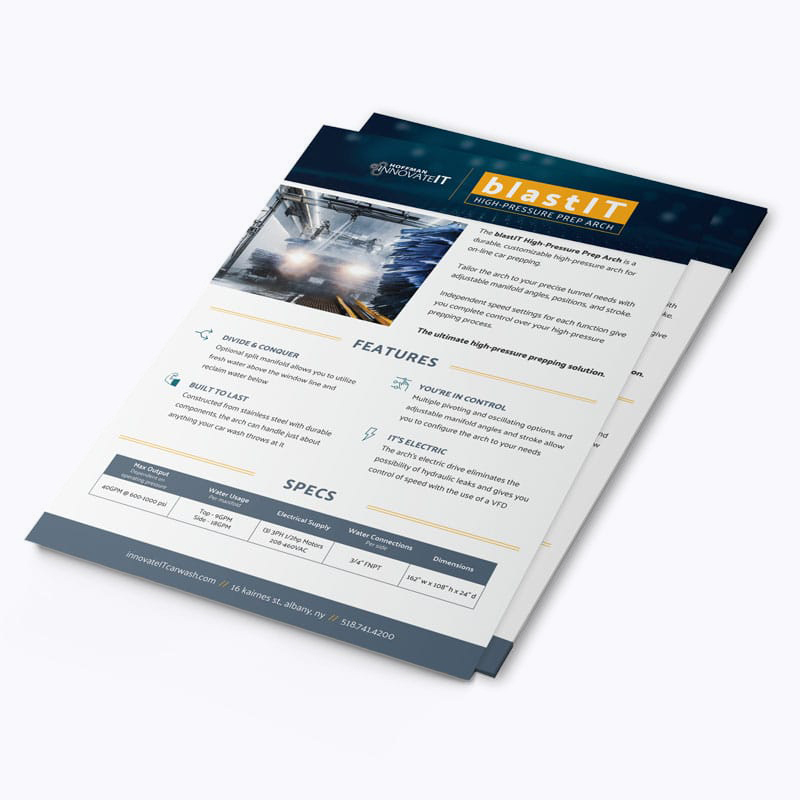

Enter your email below to download a copy of the blastIT High-Pressure Prep Arch product flyer.
