6. Troubleshooting #
For product support, contact support@innovateITcarwash.com, or call (518) 741-4200 (option 2).
6.1 Manually Testing Functions #
The dispenseIT includes a manual solenoid testing feature that enables the user to verify proper valve operation and air supply independently of automated controls. This function is useful during system setup, maintenance, and troubleshooting. The pump does not activate during manual testing.
- Ensure air is supplied to system through Main Air Regulator (set to 80-90 psi).
- Press in the blue or yellow button on the front of each solenoid card on the Air Control Manifold (Fig. 4.4.2 – 1).
- Each solenoid position has two functions, labeled A and B. The functions alternate in pairs as you move down the manifold. This pattern continues in sequence for all valve modules (e.g.,):
- A = Function #1, B = Function #2
- A = Function #3, B = Function #4
- A = Function #5, B = Function #6
- Confirm that the corresponding process valve activates. The blue indicator should push into the clear cap, signaling the valve is open.
- Repeat the process for all solenoids to ensure each valve fires correctly.
- If any valves do not open, refer to the Valves/Solenoids section within Section 6 -Troubleshooting for further guidance.

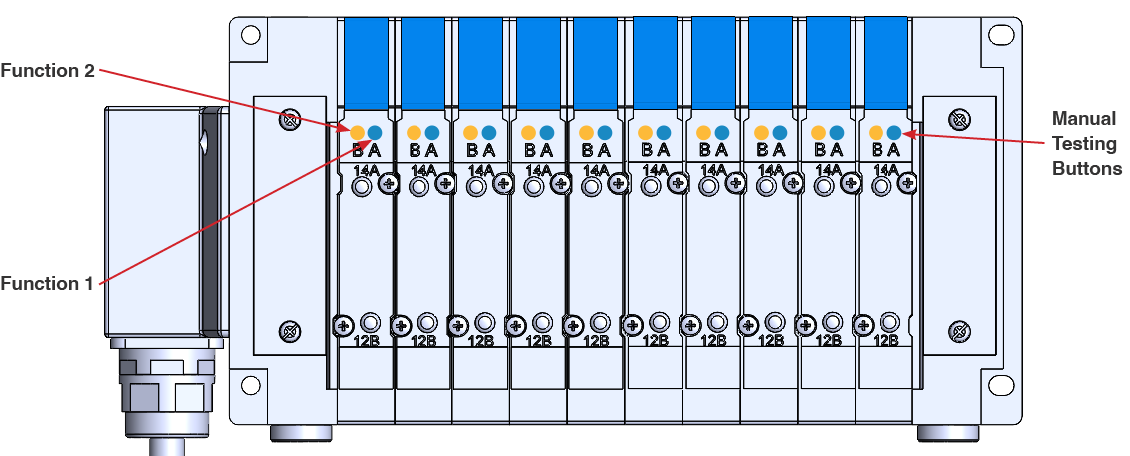

Fig. 4.4.2 – 1 – Air Control Manifold solenoid testing buttons
