THE ULTIMATE RECLAIM SOLUTION

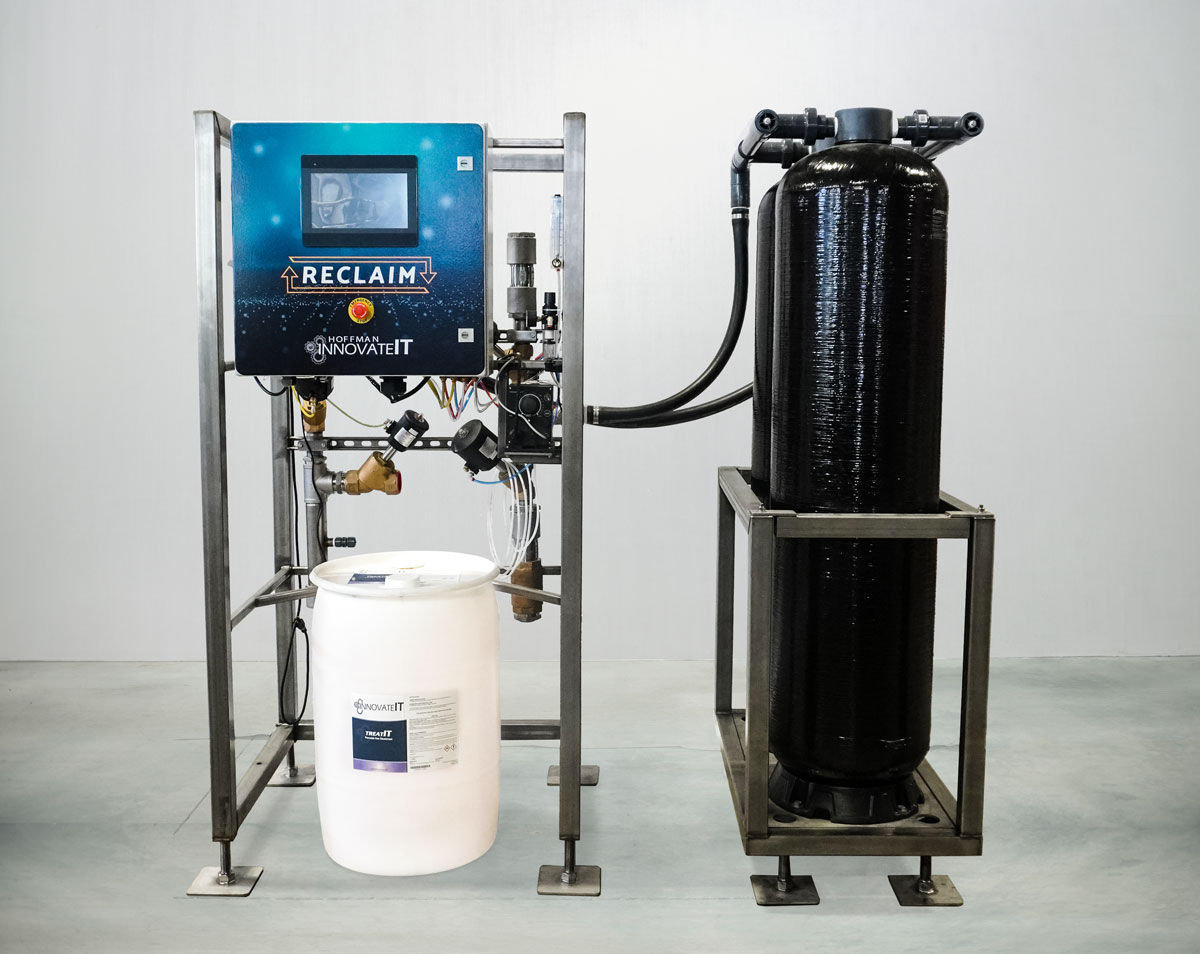

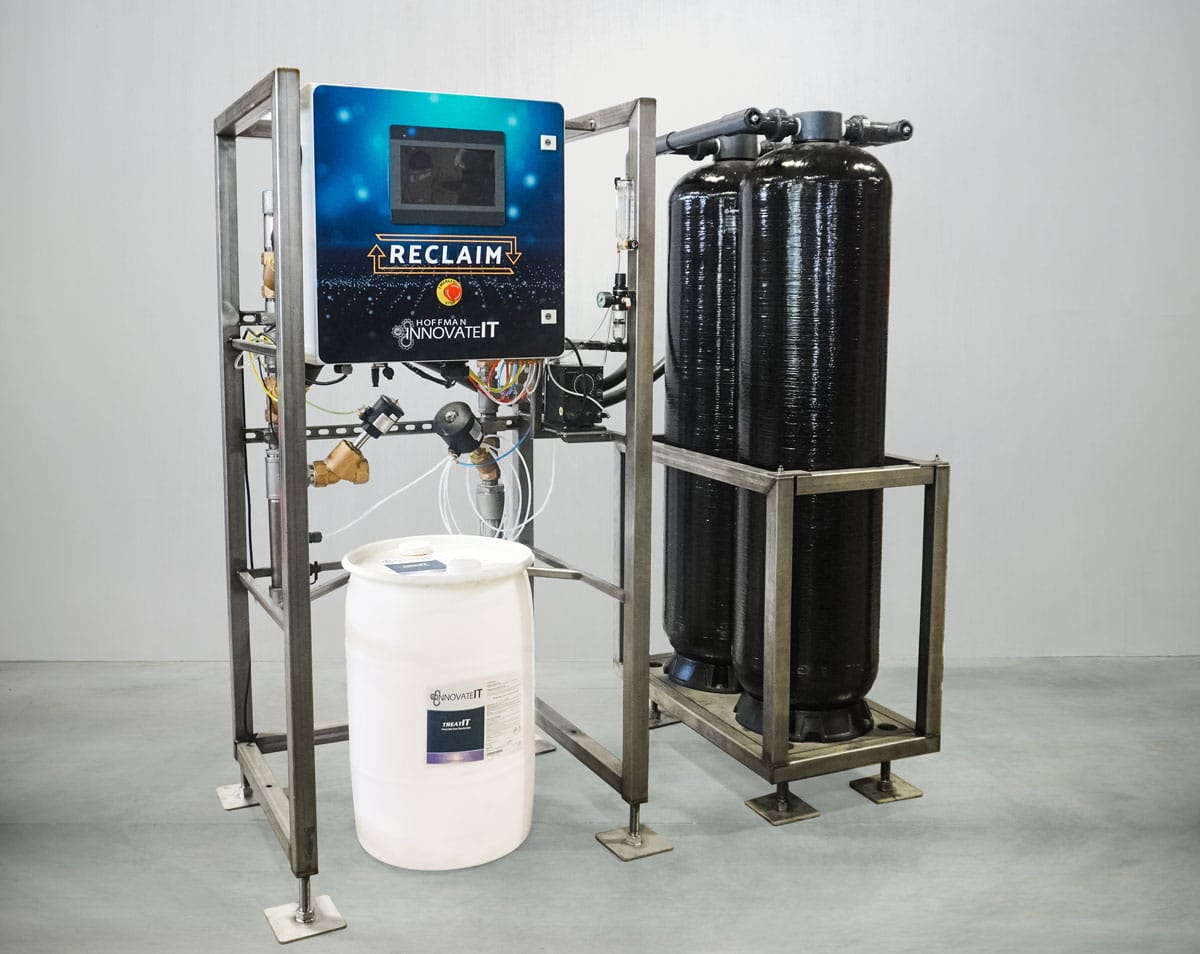

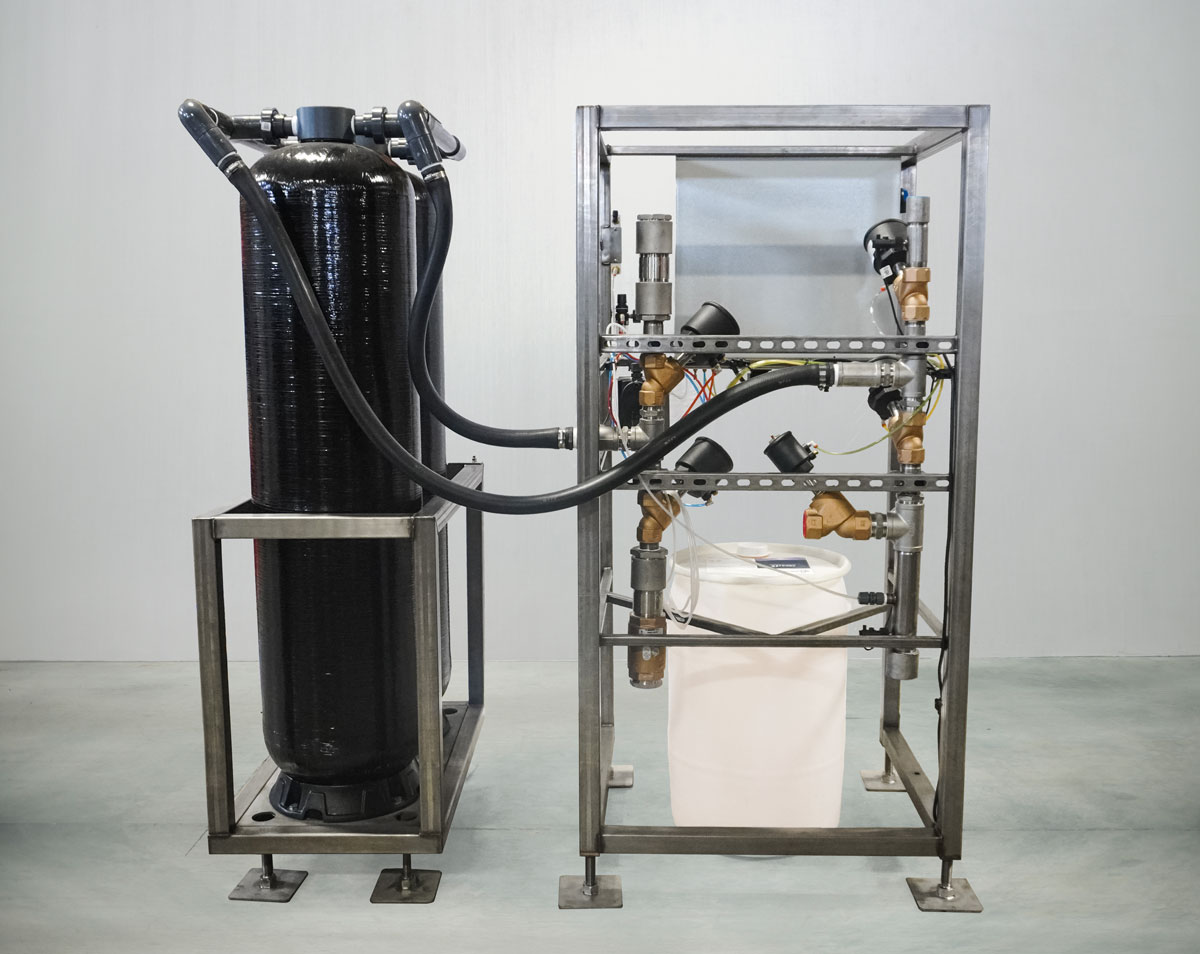

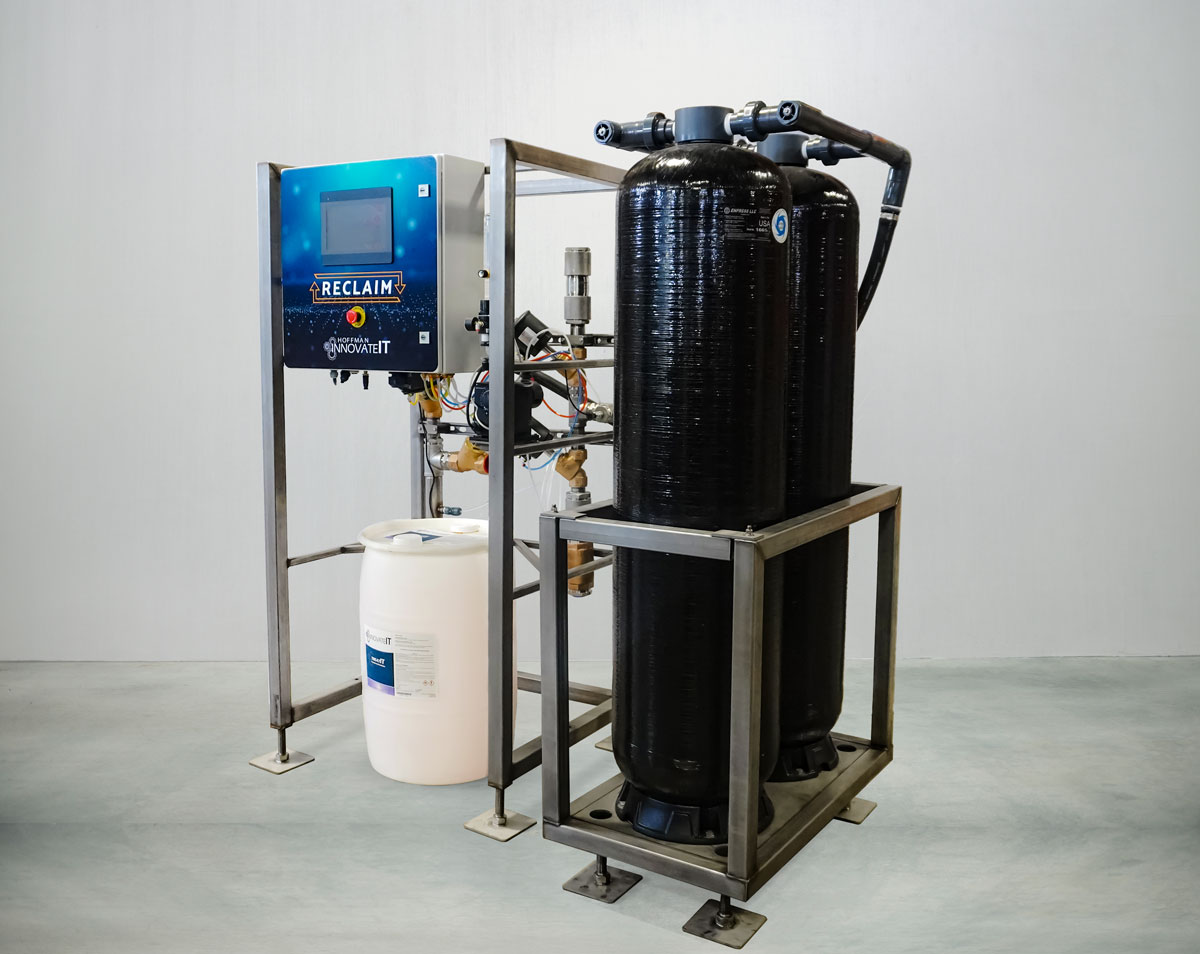

Introducing the patent pending Reclaim Water Treatment System by innovateIT.
An intelligent water reclaim system that turns your backroom into a water treatment facility.
Produce high-quality, odorless reclaim water while minimizing chemical usage and maintenance.
The ultimate reclaim solution.

High-Performance Multimedia Filters
Grundfos Dosing Pump
User-Friendly Touchscreen Interface
Stainless Steel Construction
Chemical Barrel Storage
Leveling Feet To Simplify Installation
High-performance multimedia filters remove over 99% of particles larger than 10 microns and 60 % of particles larger than 3 microns
Operator adjustable dosing for changes in water temperature, varying wash volume and the dirt being washed from vehicles
Designed to simplify installation and integration, provide long trouble-free operation and reduce life cycle cost
BENEFITS
High-Quality Water Production
Produces high-quality, odorless reclaim water that can be stored in a tank for future use and minimizes clogged nozzles
Eliminates Daily Maintenance
The system’s Grundfos grinder pump replaces the need for a strainer basket, eliminating daily maintenance
High-Performance Filtration
High-performance multimedia filters remove neutrally buoyant particles, allowing the system to produce high-quality water that minimizes clogged nozzles.
Adjustable Dosing
Operator adjustable chemical dosing compensates for changes in water quality, removing odors and minimizing chemical usage
Supports Self-Cleaning Trench
The system combines key waste water treatment processes with high-flow recirculation to provide a self-cleaning trench
Premium Components
Features stainless steel construction, Grundfos reclaim and dosing pumps and high-performance multimedia filters
High-Quality Water Production
Produces high-quality, odorless reclaim water that can be stored in a tank for future use and minimizes clogged nozzles
Eliminates Daily Maintenance
The system’s Grundfos grinder pump replaces the need for a strainer basket, eliminating daily maintenance
Adjustable
Dosing
Operator adjustable chemical dosing compensates for changes in water quality, removing odors and minimizing chemical usage
High-Performance Filtration
High-performance multimedia filters remove neutrally buoyant particles, allowing the system to produce high-quality water that minimizes clogged nozzles.
Supports Self-Cleaning Trench
The system combines key waste water treatment processes with high-flow recirculation to provide a self-cleaning trench
Premium
Components
Features stainless steel construction, Grundfos reclaim and dosing pumps and high-performance multimedia filters
SPECS
Unit | Output GPM | Filter Volume | Particle Size | Pump Voltage | Pump Output | Auto Backflush | |
---|---|---|---|---|---|---|---|
Standard Flow | 20 | 14 Cubic Feet | <10 Micron | 480 | 4 hp | Yes | |
High Flow | 40 | 28 Cubic Feet | <10 Micron | 480 | 4 hp | Yes |
